Description

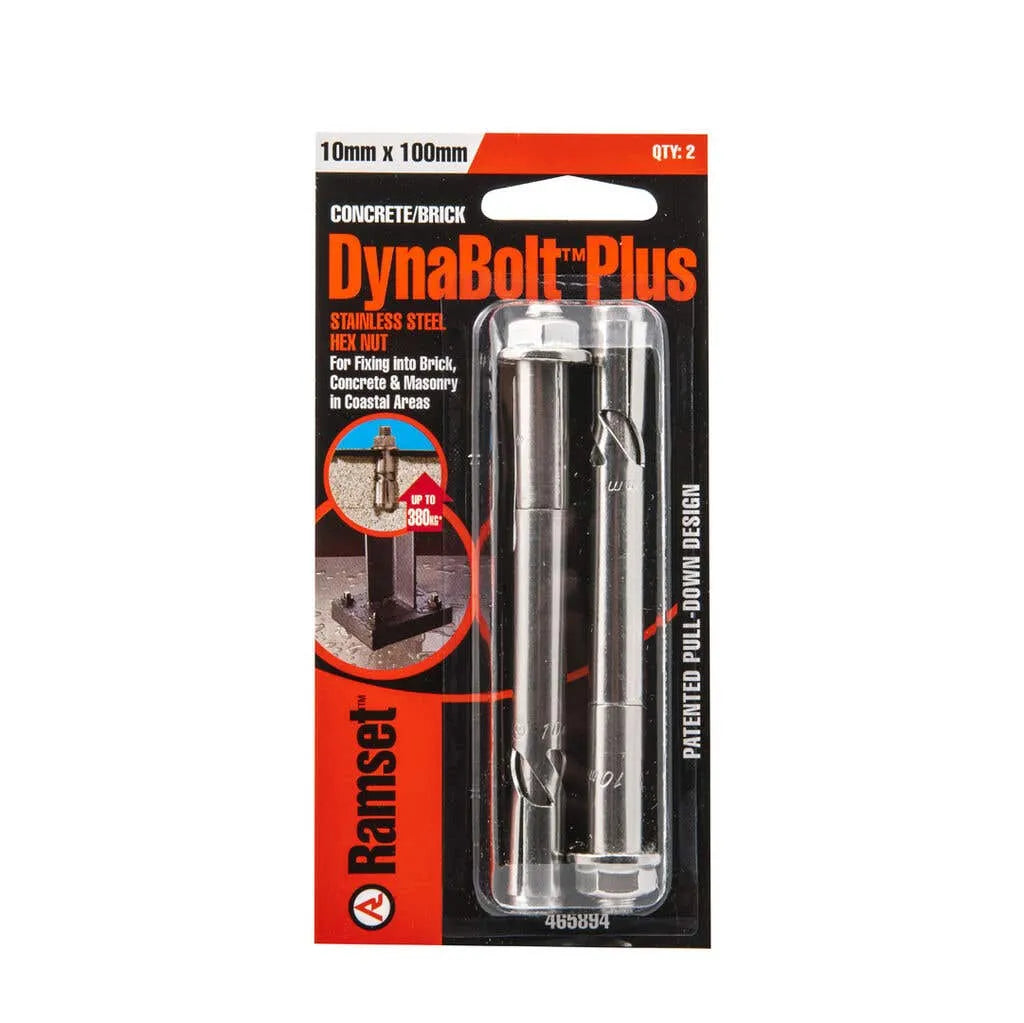

The Ramset‚Ñ¢ DynaBolt‚Ñ¢ Plus Sleeve Anchor is a torque-controlled expansion anchor with an integrated pull-down section, designed for medium-duty anchoring of timber and steel fixtures to concrete, brick, or block. It features a hex head and is available in various head styles and finishes. The anchor is engineered to fit a 10mm drilled hole diameter and comes in lengths of 100mm. For corrosion protection, it is available with zinc plating or galvanizing. The DynaBolt‚Ñ¢ Plus patented expansion sleeve closes gaps of up to 5mm, pulling down on the fixture to induce clamp load and provide improved security.
The DynaBolt‚Ñ¢ Plus is a fully assembled through-fixture anchor, eliminating the need for assembly, marking out, and re-positioning of fixtures, thereby making installation fast and easy. The choice of multiple head styles makes the DynaBolt‚Ñ¢ Plus a versatile anchor for a variety of applications.
Features
- Hex head
- Torque controlled
- 10mm drilled hole diameter
- Anchor lengths: 100mm
- Corrosion Protection: Zinc Plating, Galvanizing
