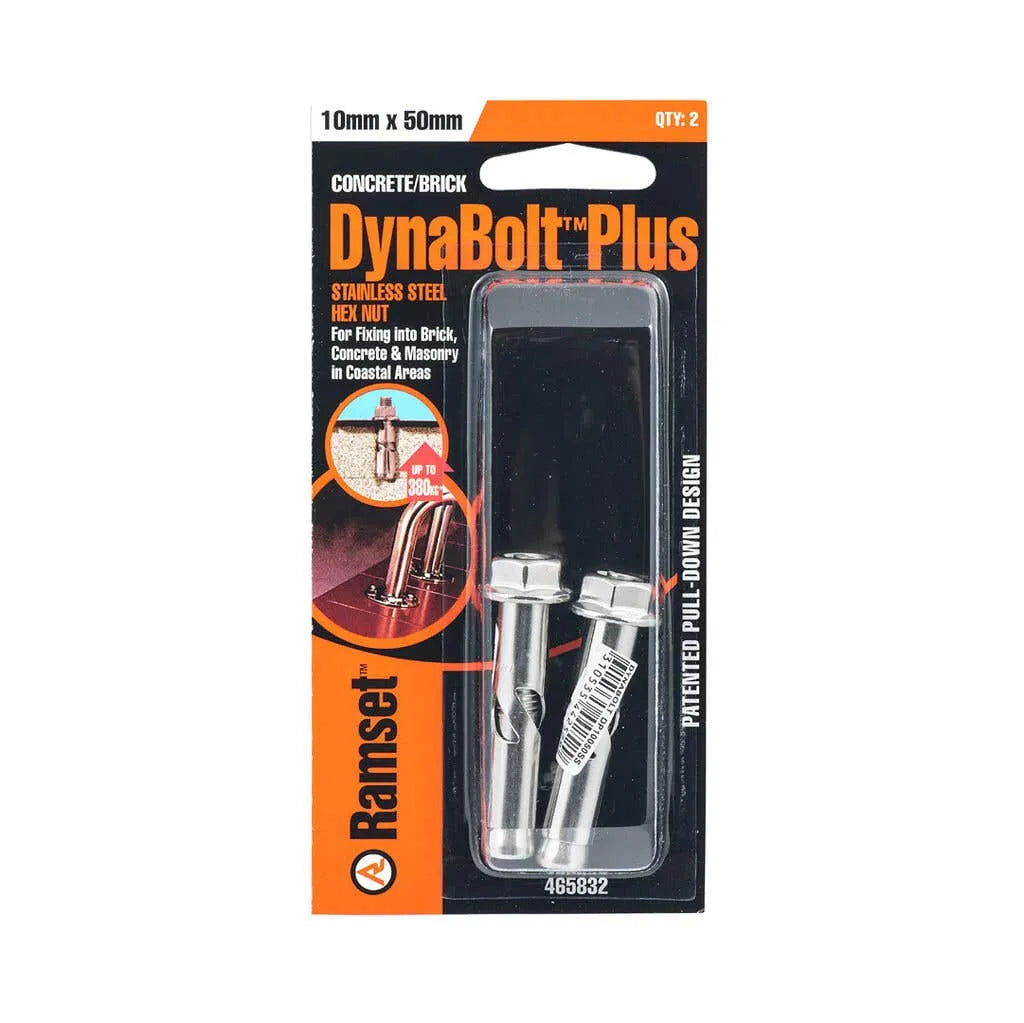

The Ramset™ DynaBolt™ Plus Sleeve Anchor is a torque-controlled expansion anchor with an integrated pull-down section, designed for medium-duty anchoring of timber and steel fixtures to concrete, brick, or block. It features a hex head and is torque controlled, with a 10mm drilled hole diameter and anchor lengths of 50mm. The anchor is available with corrosion protection options such as zinc plating and galvanizing. The DynaBolt™ Plus patented expansion sleeve closes gaps of up to 5mm, pulling down on the fixture to induce clamp load and provide improved security.
The DynaBolt™ Plus is a fully assembled through-fixture anchor, eliminating the need for assembly, marking out, and re-positioning of fixtures, making installation fast and easy. The choice of multiple head styles makes the DynaBolt™ Plus a versatile anchor for a variety of applications. This product is available in a variety of different head styles and finishes, ensuring it meets diverse project requirements.
Features
- Hex head
- Torque controlled
- 10mm drilled hole diameter
