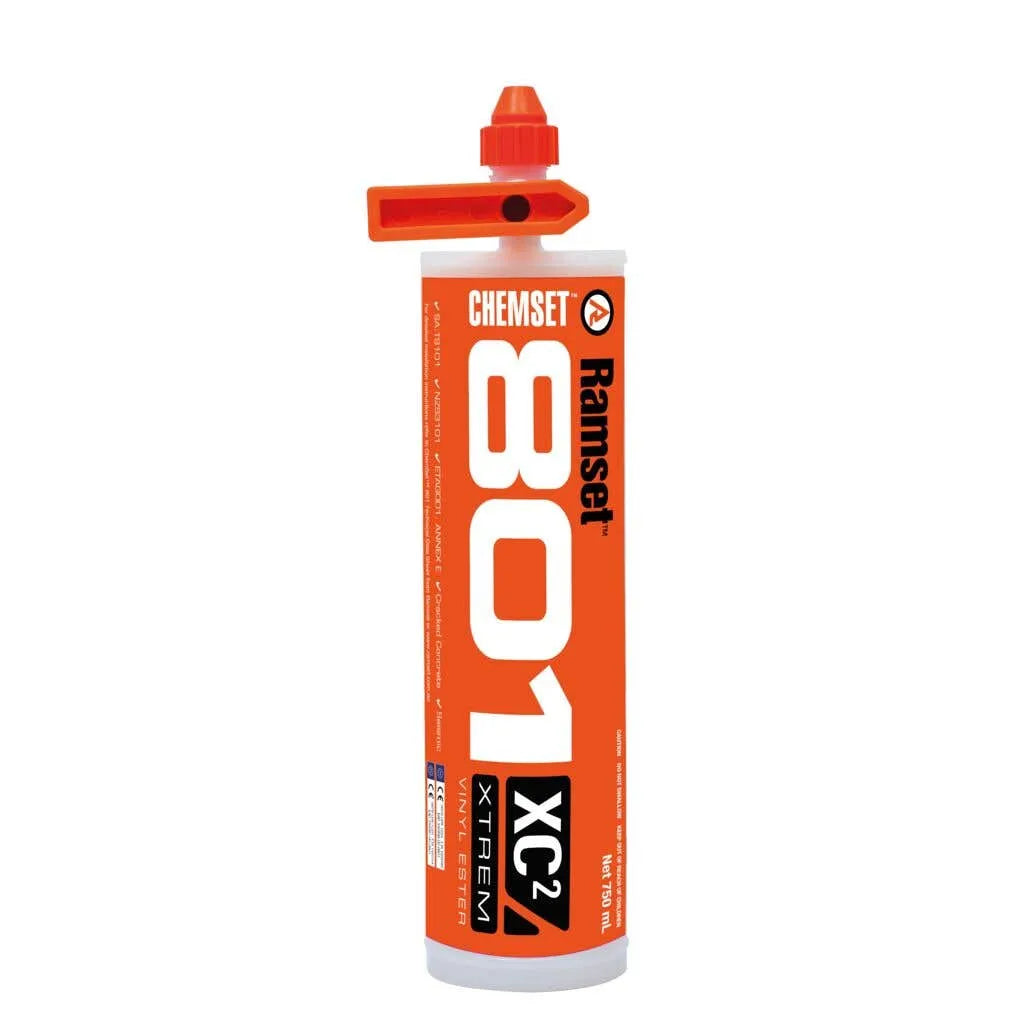

The CHEMSET 801 XC2 CARTRIDGE is a heavy-duty epoxy acrylate designed for anchoring threaded studs and reinforcing bars into solid concrete, stone, hollow brick, and hollow concrete blocks. It offers high bond strength for both diamond and carbide drilled holes, ensuring fast curing for high productivity. The non-drip formula makes it ideal for overhead installations, and its styrene-free, low-odor composition ensures safety and ease of use. This product is perfect for applications involving steel columns, beams, starter bars, road stitching, seating, and handrails.
Key features and benefits include excellent chemical resistance, suitability for use in contact with drinking water, and a strong bond. The product specifications are as follows: Part A appears white, Part B black, and when mixed, it turns dark grey. It is an epoxy chemical type with a density of 1.30 kg/litre at 20°C. The heat distortion temperature is approximately 80°C, with a hardness greater than Shore D 80. The compressive strength is 75 MPa, water absorption is greater than 4 GPa, tensile strength exceeds 25 MPa, and flexural strength is approximately 22 MPa. It meets the AS/NZS4020 standard for contact with drinking water and has service temperature limits ranging from -10°C to 80°C. The working time at 20°C is 6 to 10 minutes, with a loading time of 14 hours. The minimum installation temperature is 5°C, and the maximum is 40°C. The product is suitable for substrates such as solid concrete, solid stone (proof loading recommended), and solid brick.
Features
- Excellent chemical resistance
- Suitable for use in contact with drinking water
- Strong bond
